Filter Plugin For Breakover Prediction

foglamp-filter-breakover forecast the possibility of breakover. The output of this plugin can appear as follows

asset_reading

1. Setting up your artifacts

The trained model from keras needs to be in .h5 format for its usage in this filter.

models/
├── breakover_forecasting_model.tflite
└── breakover_forecasting_model.h5

2. Setting up bucket

ML Model Upload Screen

  1. Make sure foglamp-gui-ml-models and foglamp-service-bucket is installed. If not, install these.

  2. Click on “ML Models” in FogLAMP GUI

  3. Click on import, and set the appropriate values. Then upload the prepared model above. e.g.

Name: "breakover_model.h5"
Architecture: All
Hardware: CPU
Version: "1.0"
Description: ""
File: "models/breakover_forecasting_model.h5"

3. Setting up plugin configuration

Configuring the filter, starts with selecting the filter and giving an application name for it. The screen will look like the following.

Plugin Screen 1

Following this the next screen will have the plugin configuration as shown below:

cfg2_enable

  • ‘Add performance counters’: type: `boolean` default: ‘false’:

    Add performance counters metadata containing resource utilization statistics.

  • ‘Log level’: type: `enumeration` default: ‘INFO’:

    Log level for diagnostic or error output.

    Options are:

    • ERROR

    • WARN

    • INFO

    • DEBUG

  • ‘Enabled’: type: `boolean` default: ‘false’:

    Enable breakover forecast filter plugin.

cfg2_inference

  • ‘Sequence size’: type: `integer` default: ‘10.0’:

    Sequence size that is to be used for breakover forecasting.

  • ‘Inference interval’: type: `float` default: ‘1.0’:

    Time interval after which the data will be passed through the model.

  • ‘Inference interval unit’: type: `enumeration` default: ‘seconds’:

    Time interval unit.

    Options are:

    • seconds

    • minutes

    • hours

cfg2_ml_model

  • ‘Model name’: type: `string` default: ‘breakover_forecasting_model.h5’:

    Model to be loaded from bucket service.

  • ‘Model version’: type: `string` default: ‘1.0’:

    Model version as stored in bucket.

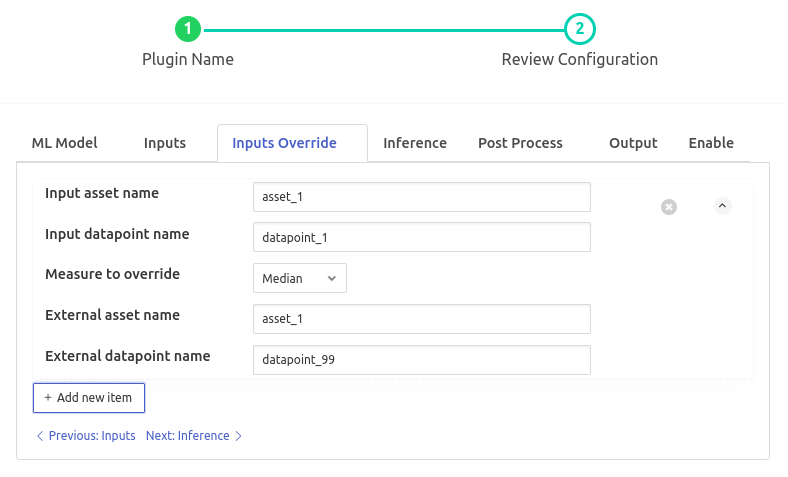

cfg2_inputs

List of objects are to be added in this group. Object properties are as below:

  • ‘Asset name’: type: `string` default: ‘asset_1’:

    Enter input asset name.

  • ‘Datapoint name’: type: `string` default: ‘datapoint_1’:

    Enter input datapoint name.

  • ‘Feature type’: type: `enumeration` default: ‘Boolean’:

    Datatype of the feature.

    Options are:

    • Boolean

    • Numeric

  • ‘Scaling strategy’: type: `enumeration` default: ‘None’:

    The strategy that is to be used for data scaling.

    Options are:

    • None

    • Normalization

    • Standardization

  • ‘Minimum’: type: `float` default: ‘-1.0’:

    Enter minimum value for data normalization.

  • ‘Mean’: type: `float` default: ‘-1.0’:

    Enter mean value for data standardization.

  • ‘Maximum’: type: `float` default: ‘-1.0’:

    Enter maximum value for data normalization.

  • ‘Standard deviation’: type: `float` default: ‘-1.0’:

    Enter standard deviation value for data standardization.

cfg2_output

  • ‘Forward data’: type: `boolean` default: ‘true’:

    Whether to forward received PLC data down the filter chain.

  • ‘Asset name’: type: `string` default: ‘breakover’:

    Name of asset that indicates breakover forecast.

  • ‘Score datapoint name’: type: `string` default: ‘forecast_score’:

    Name of datapoint that indicates breakover forecast score.

  • ‘Forecast datapoint name’: type: `string` default: ‘forecast_imminent’:

    Name of datapoint that indicates breakover forecast.

cfg2_post_process

  • ‘Score Window Length’: type: `integer` default: ‘10’:

    Number of score values that is to be used for breakover forecasting.

  • ‘Measure name’: type: `enumeration` default: ‘Average’:

    Measure to calculate on the scores value present in the window.

    Options are:

    • Summation

    • Minimum

    • Average

    • Median

    • Maximum

    • Standard Deviation

    • Variance

  • ‘Threshold’: type: `float` default: ‘0.5’:

    Threshold to apply on the calculated measure value.

Click on Done when ready.
